U52

Sensibly equivalent to:
5U4G CV575 CV1071 CV1575 GZ31 VU71
See also:
The Williamson Amplifier - Osram Valve Range Advert - Design for a 50 Watt Amplifier

Extras ▼



This exhibit carries the Marconi name but was in Canada by RVC.
The U52 is directly heated full wave rectifier with a rating of 500 Volts on the anodes and a PIV of 1,400 V. The U52 has a maximum reservoir capacitor rating of 16 µF and a minimum series resistance of 180 Ohms.

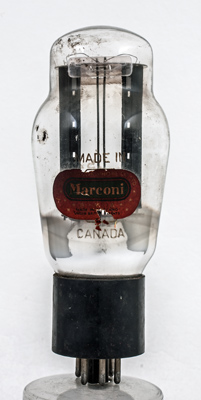

The Marconi paper label with Made in Canada etched in the glass. Looking at the label from the back the glass actually carries the Type designation of VU71. The VU71 being a pre CV UK service code. This then dates this valve to before 1941.

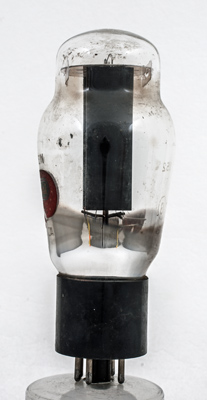

Side view of an anode.

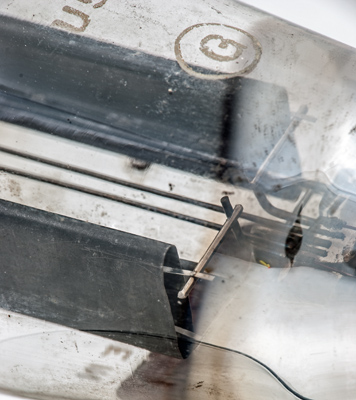

The filament is an oxide coated ribbon mounted as an inverted V.

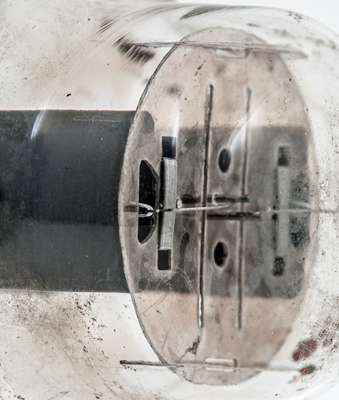

The top mica showing the top of one filament and the supporting tensioning spring holding it.
The classic envelope is 52 mm in diameter, and excluding the IO base pins, is 119 mm tall.
References: Datasheet, 1040 & 1043. Type U52 was first introduced in 1938.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
f
-
a(2)
-
a(1)
-
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
3.0
500
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 26, 2018.
shape:classic construction:pinch type:rectifier.fw age:1930.1940 base:io heater:5.0v pins:8 pin:1.- pin:2.f pin:3.- pin:4.a(2) pin:5.- pin:6.a(1) pin:7.- pin:8.f
