VMP4

Sensibly equivalent to:
VMP4/K
See also:
Catkin Valves - The Cathode-ray Oscillograph - The Metal Valve

Extras ▼

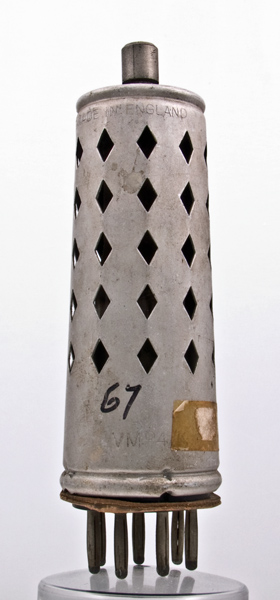

The VMP4 or VMP4K is a variable μ screened amplifier pentode for RF and IF amplification in superhet receivers. This exhibit is the Catkin version and internally is totally different to the glass replacement the VMP4G.

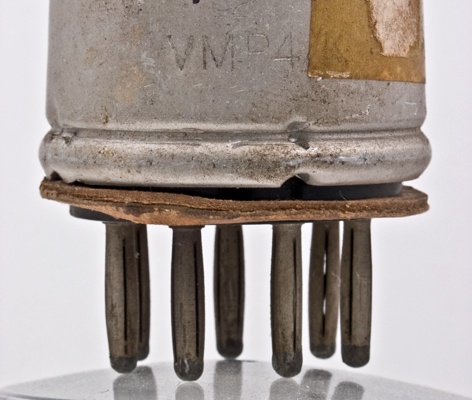

The seven pins fit into a Paxolin support and a composition base.

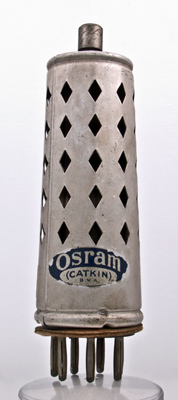

The Catkin label and Osram branding.

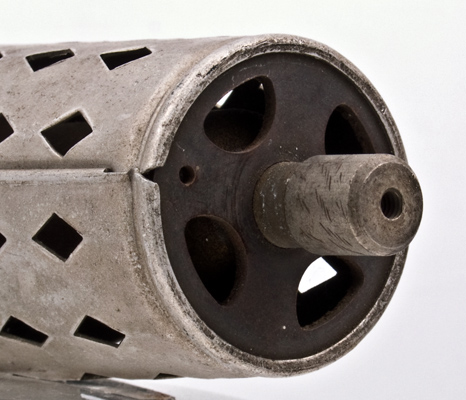

The top cap is fixed and not screw on.

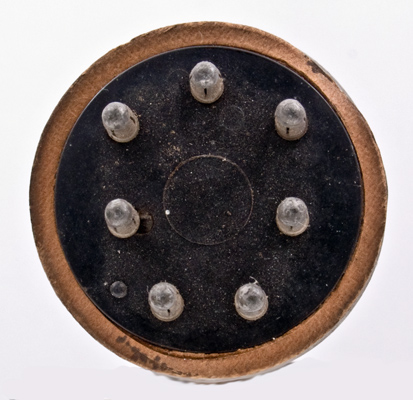

The B7 base.
The envelope is 39 mm in diameter and, excluding the B7 base pins, is 115 mm tall.
References: Data-sheet & 1043. Type VMP4 was first introduced in 1934. See also 1934 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
g1
g3
h
h
k
g2
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
4.0
1.0
250
100
-2.0
8.0
5.0
2.7
Thanks to Frank Philipse for supplying the above PDF datasheet.
