Base B7

Extras ▼

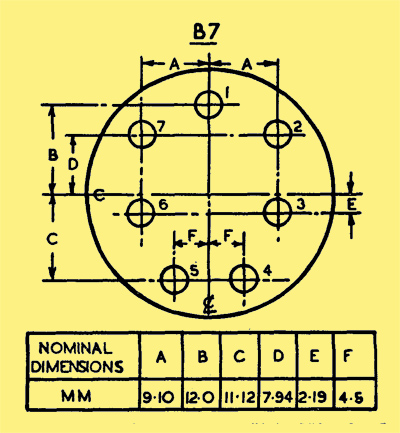

The B7 base was introduced in 1933 to allow for the extra connections required for multi-electrode valves and Class B audio output valves. As with all base diagrams the view is looking towards the pins.

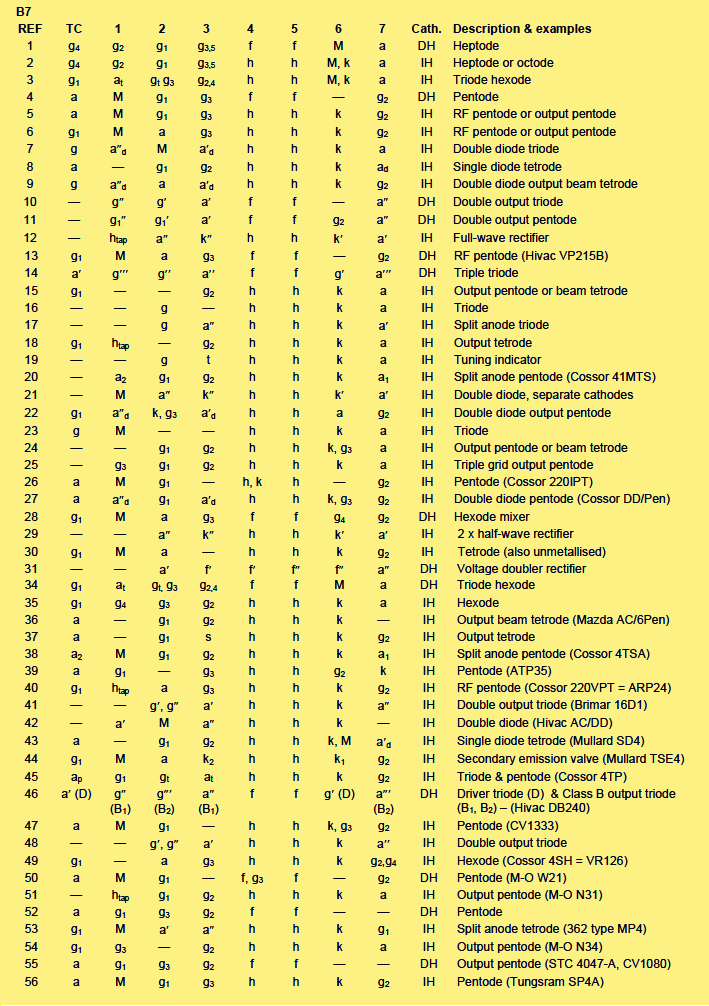

The pin-outs below refer to the data researched by Keith R Thrower OBE.

Use browser back button to return.
