610RC


See also:
Cossor RC valves Advert, March 23, 1927 - Cossor Point One and Stentor Valves

Extras ▼

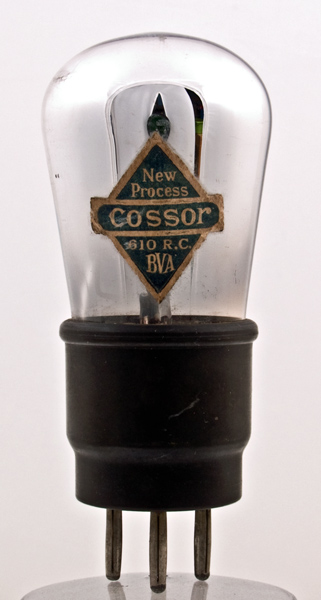

The 610RC is a six volt directly heated triode. The original 610RC dates to 1927 and the 'New Process' to September 1929. It was designed for use in resistance-capacitance coupled amplifiers and has an oxide coated filament.
See also 210RC with the 2 volt filament. The range also included the 410RC four volt version.

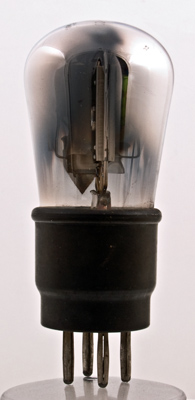

The silvering of the bulb makes viewing the electrodes difficult.

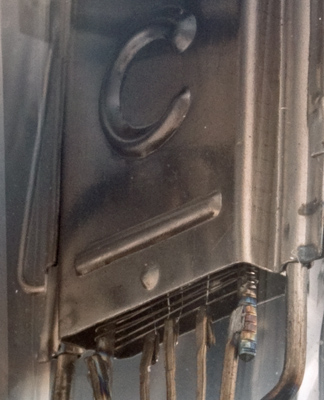

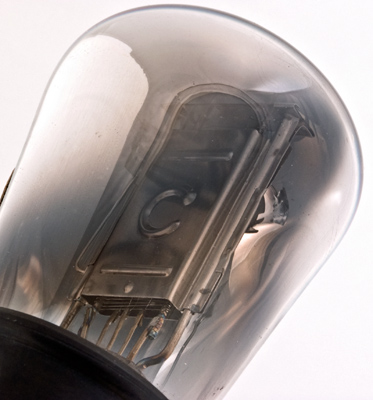

From one angle the construction is revealed. The box anode carries the C for Cossor and has a top mica support.
The four filament strands pass along the anode, their lower ends are held by folding over the support wires and clamping the fold over the tungsten wire. The grid is wound between two support rods and is held to the support in notches.
The balloon envelope is 41 mm in diameter, and excluding the B4 base pins is 83 mm tall.
References: Data-sheet, 1043 & 1040. Type 610RC was first introduced in 1927. See also 1927 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.0
0.1
120
-
-
80,000
0.63
50
