Base B4


Extras ▼



This was the original base for the hard valve that was introduced in France in 1915 and in the UK was made as the R Type.

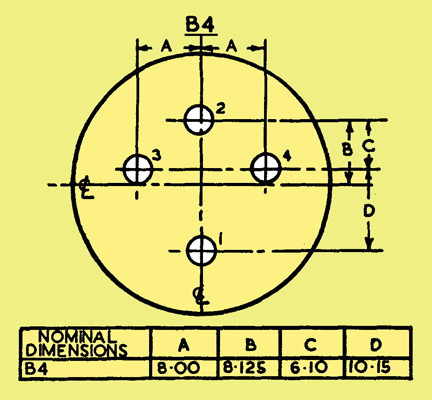

In the original pin layout given to the R Type and subsequently used for countless later designs: Pin one connected to the anode, pin two was for the grid and pins three and four were for the filament.

B4 Types

 Variants

B4

 Standard British four-pin base. Early types had metal shell and later types were moulded. Used on the majority of early low-power valves.

B4-1

 B4 with un-plated brass shell. Used on early R-types.

B4-2

 As B4-1 but with plated metal shell. Use: most early receiver valves.

B4-3

 B4 with plated metal shell having central groove. Early Marconi-Osram types.

B4-E

 B4-2 base with shortened filament pins. Early Ediswan types.

B4/N

 -2 base with pair of scissors contacts connecting to bottom studs. Nelson three-filament types.

B4/M

 B4 with moulded base, usually Bakelite. On later low-power valves.

B4/W

 Moulded B4 base with side screw connecting to series filament resistor. Used on Cossor 'Wuncell' range.

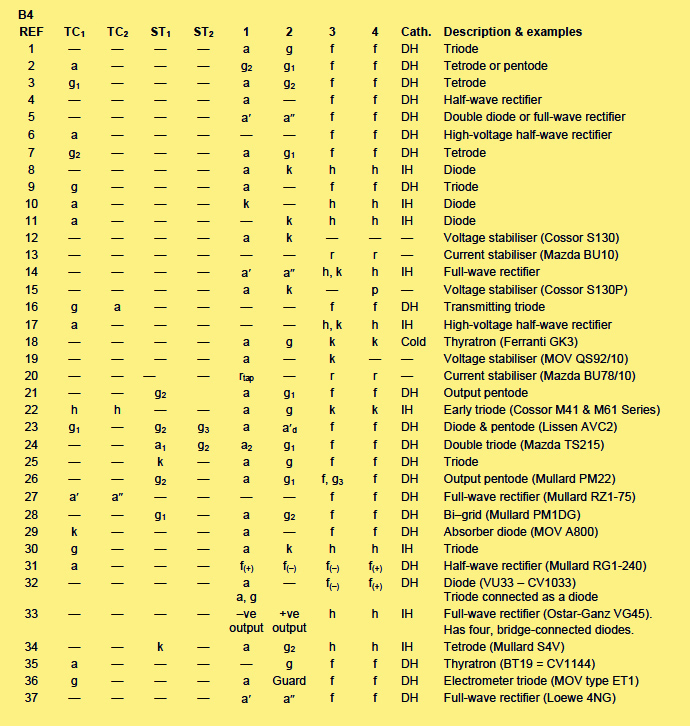

The pin-outs below refer to the data researched by Keith R Thrower OBE.
