CMG22

Sensibly equivalent to:
52CG CMG22 CV248 GS16

Extras ▼



The CMG22 is a gas filled photocell with a caesium on silver cathode.

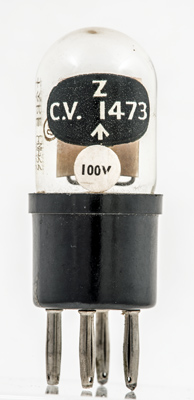

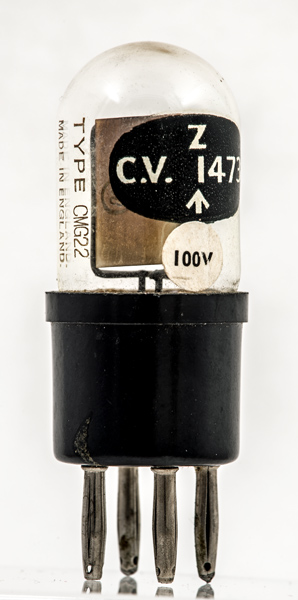

The labels give the equivalent as the CV1473 and the anode voltage to use as 100 V.

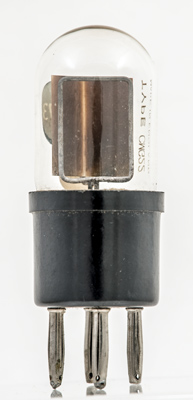

The anode is a wire rectangle placed in front of the photo-cathode.

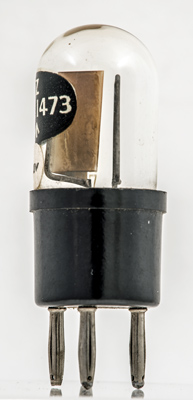

The cathode seen face on has the approximate area of the anode aperture but the shape would allow for off-axis illumination.

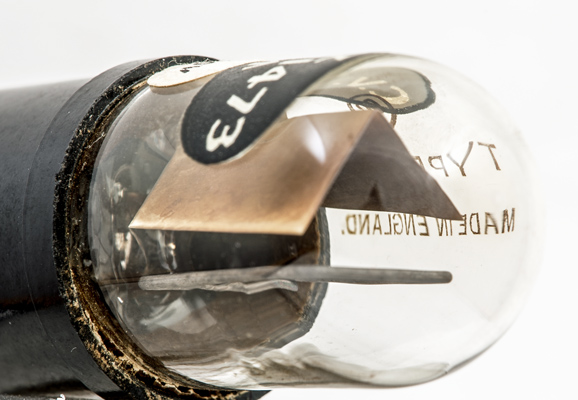

The coated cathode plate is a rectangle bent with a 90 ° included angle. Our CV1473 has a semi-circular cathode.
The wide glass tube envelope is 25 mm in diameter, and excluding the B4 base pins is 57 mm tall.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
4
a
nc
nc
k



Absolute Maximum Operating Conditions
Light Control
Va
80-110
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 09, 2022.
