6V6G

Sensibly equivalent to:
CV509 VT-107B
See also:
Beam Tetrodes and the 807 - Tetrodes with Screen Feedback - The 'Microamp'

Extras ▼



The 6V6 family of beam tetrodes came in many constructions and were very popular as the final audio stage of broadcast receivers.

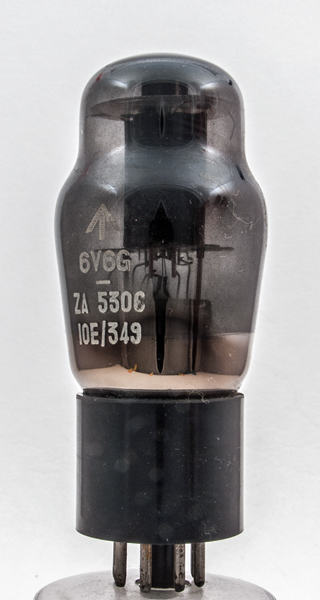

This exhibit was supplied to the UK Government as it carries the old stores code of 10E/349.
Through the smoked glass part of the construction can be seen. The control grid is wound on copper rods and has a heat radiating fin above the top mica.
The classic envelope is 45 mm in diameter, and excluding the IO base pins is 99 mm tall.
References: Data-sheet, 1040 & 1043. Type 6V6G was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.45
315
225
-13
34
2.2
77K
3.75
5.5W
12%
Thanks to Frank Philipse for supplying the above PDF datasheet.
