6132

Sensibly equivalent to:
CV4055
See also:
Trustworthy Valves Advert - Trustworthy Valves Advert - 12 Points of Trustworthy Valves Advert

Extras ▼

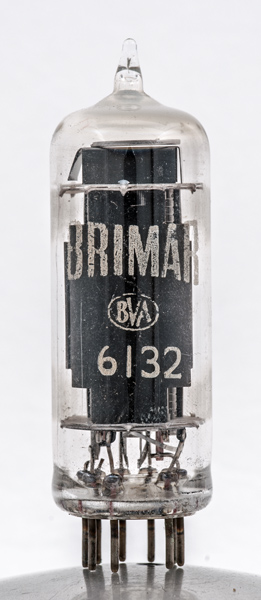

The 6132 is a special quality beam tetrode based on the CV2127 or 6CH6. The design is for a video output valve used under conditions of vibration and shock.
The beam plates are formed from four vertical support rods. The cathode is flat and the grids shaped to pass across the cathode at a constant distance from it.

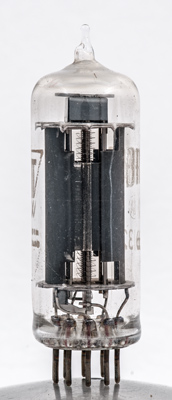

The end wall of the anode is cut down revealing the two inner grids and the beam plates.

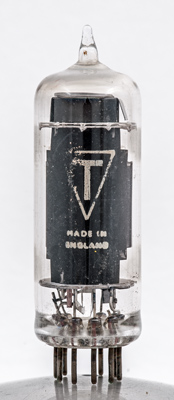

The Brimar T logo for Trustworthy valves. Note the double mica sheets, the method used to reduce the effects of vibration.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins, is 60 mm tall.
References: Datasheet.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k
h
h
-
a
g2
g3



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.75
250
250
-4.5
40
6
50,000
11
3W
8.5%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 03, 2017.
