The VS2 is a variable-mu amplifier pentode with a 2 Volt filament.
The filament is for accumulator use and the anode is designed for dry battery operation with a maximum anode voltage of 150 Volts.

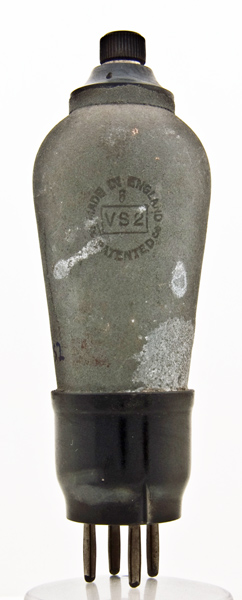

Our other VS2 has a plain envelope through which the electrodes can be seen.

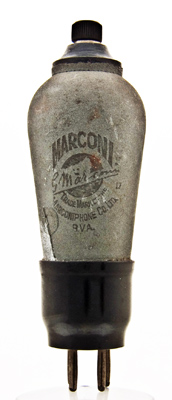

The reverse holds the Marconi logo and signature.
The balloon envelope is 44 mm in diameter, and excluding the B4 base pins is 117 mm tall.
References: Data-sheet & 1040.



Pin Connections
B4
1
2
3
4
tc
g2
g1
f
f
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
2.0
0.18
150
90
0
2.5
0.5
1.4
PDF scanned from an original document held by the museum
