ECC81

Sensibly equivalent to:
12AT7 B152 B309 CV455 E2157 E811CC
See also:
Valves and their Habits - Pin Compatible Double Triodes - ECC81 Advert - Double Triodes in Audio Amplifiers Advert - Noval Based Valves for Audio Amplifiers Advert - A reliable Process Timer

Extras ▼



The Mullard ECC81 was designed for RF use and is of medium impedance.
It was used as a frequency changer in five station television sets. In this application the oscillator triode would be the first to cease working.
The ECC81 also makes an excellent phase splitter in modern audio applications.

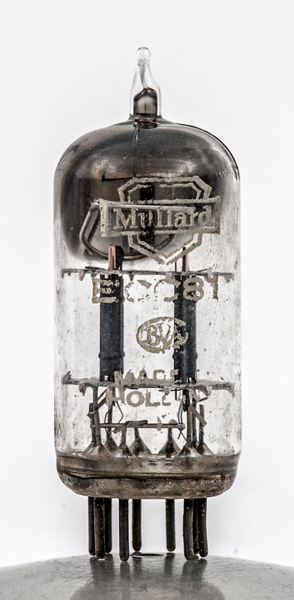

This exhibit carries the Mullard logo but was made in Holland by the parent company Philips.

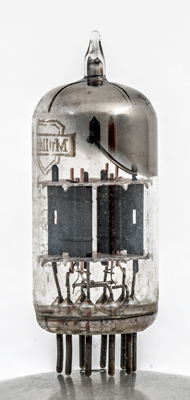

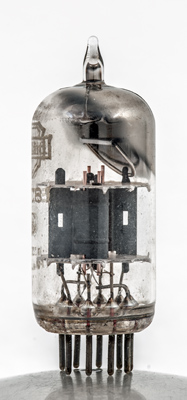

Each triode is identical and the anode has been folded and stitched. The side flange aids heat dissipation and connects to the support strut.
The control grid is supported on copper rods.
The thin glass tube envelope is 20 mm in diameter and excluding B9A base pins the length is 48 mm.
References: Data-sheet & 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-2.0
10.0
10,000
5.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 12, 2022.
