AC/VP1

Sensibly equivalent to:
9A1 A50M CV518 HP4106C MVS-Pen VMP4G VP4A VP4 VPT4B
See also:
Murphy Radio

Extras ▼



The AC/VP1 is a variable μ screened pentode designed for mains radio receivers. The variable μ characteristic enables automatic gain control of RF and IF amplifiers in superhet receivers.
The AC/VP1 and AC/VP2 were the standard RF/IF screened pentodes in the Mazda range for AC mains radios from the mid-1930s until domestic radio manufacture was interrupted by WWII.
The two valve types were essentially identical except that the AC/VP1 has its anode connected to the top cap, as with most screen-grid valves. The AC/VP2 has the control grid (g1) connected to the top cap, as was standard for later IF pentodes.

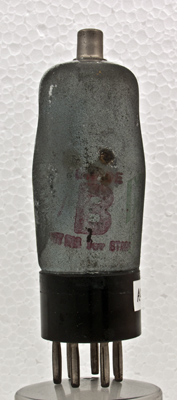

The envelope of this exhibit is marked with a B.
The unusual aspect of this exhibit is the BBC research Department sticker. The valve was labeled on September 12, 1940.

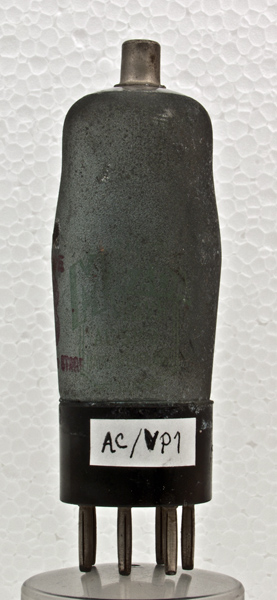

The classic envelope is 39 mm in diameter and, excluding the B7 base pins, is 106 mm tall.
References: Data-sheet & 1040. Type AC/VP1 was first introduced in 1934. See also 1934 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
g1
g3
h
h
k
g2
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
0.65
250
250
-2.8
7.4
1.85
1M
2.0
PDF scanned from an original document held by the museum
