6SN7GT

Sensibly equivalent to:
13D2 B65 CV1988 VT-231
See also:
More Transformerless Amplifiers

Extras ▼

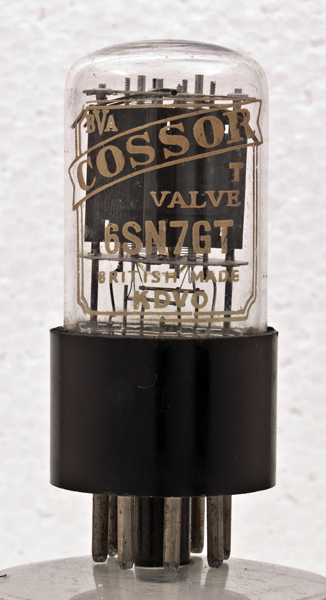

The 6SN7GT double triode valve is electrically equal to a pair of the 6J5 triodes in a single envelope.

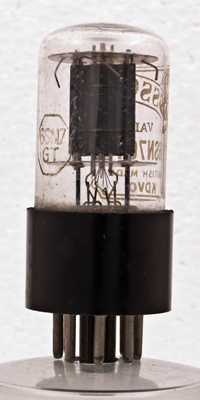

The envelope also has an etched identification. This form of octogon is typical of RCA and can be seen on 6SN7GT. Could it be that this is not quite the Cossor valve it says it is?

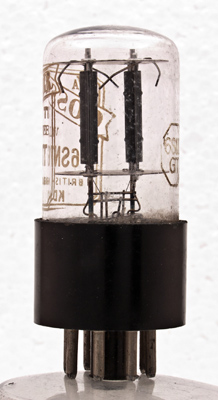

The twin triodes - end elevation.

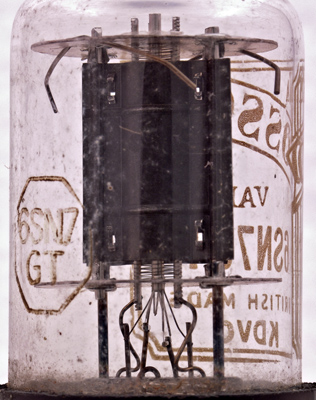

The anode in close-up revealing the fine pitch grid wire and multiple heater strands.
The wide glass tube envelope is 29 mm in diameter and excluding the IO base pin length, stands 63 mm high.
References: Data-sheet, 1040 & 1043. Type 6SN7GT was first introduced in 1941. See also 1941 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(2)
a(2)
k(2)
g1(1)
a(1)
k(1)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.6
250
-8
9
7.7k
1.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 20, 2013.
