Stentor Four

Sensibly equivalent to:
410P
See also:
Cossor Advert, May 11, 1927 - The Early Cossor Tin Hat Valves - Some Important British Valves - Cossor Point One and Stentor Valves

Extras ▼

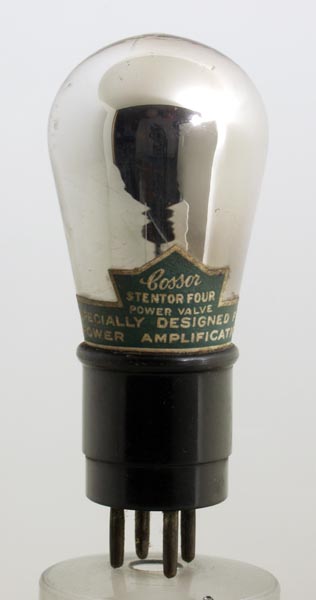

The Cossor Stentor Four, dating from 1927, was later issued as the Cossor 410P audio output valve. It has a μ of 8 and was designed for a load of 9,000 Ohms.
The balloon envelope is 44 mm in diameter and, excluding the B4 base pins, is 95 mm tall.
References: Data, 1043 & 1040. Type Stentor Four was first introduced in 1927. See also 1927 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
0.1
120
-9
11.0
5,000
2.0
