DO24

Sensibly equivalent to:
CV1040 NR47 P27-500 PP5/400 PX25 VR40
See also:
CV1040 short entry

Extras ▼

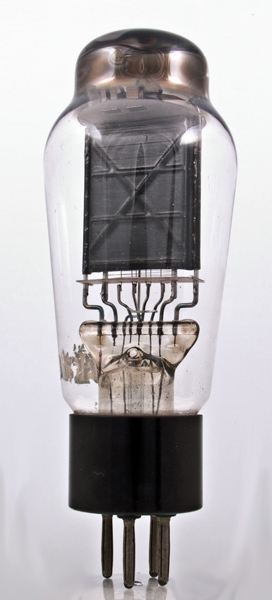

The DO24 design is a directly heated audio output triode. The rating places it above the early PX4 and below the PX25.
We also have a DO24 of early production.

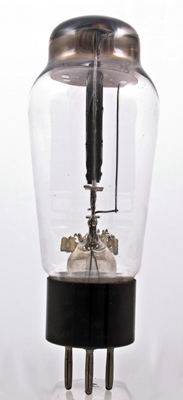

The anode is much wider than the front to back dimension.

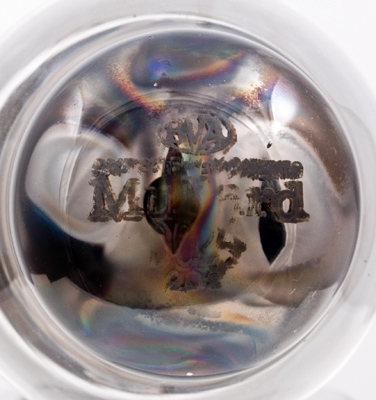

The top of the envelope carries the etched identification and makers name. The DO24 can just be seen.

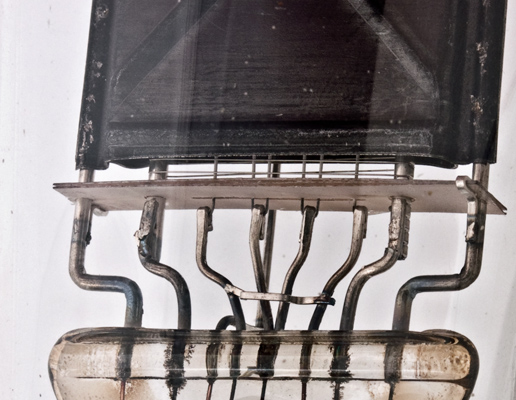

The base of the anode and pinch. The horizontal separation of the electrodes is by means of a mica sheet. The earlier production in the balloon envelope used glass spacers and not mica sheets.

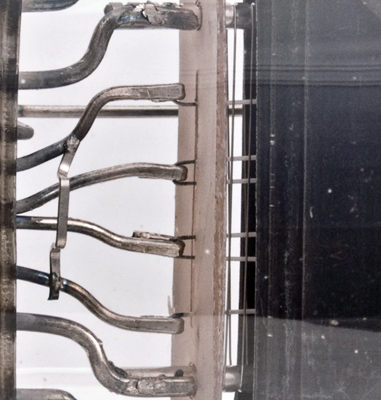

A close-up of the base of the anode. The grid wires are straight and under tension. The filament with the white oxide coating can be clearly seen.

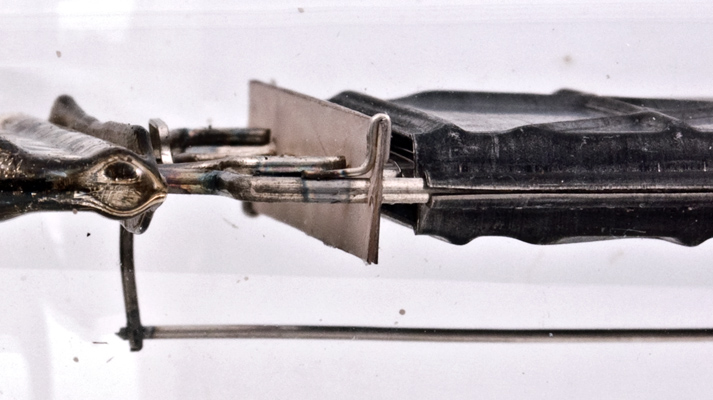

The anode is made from thin sheet pressed to shape and ridged for strength. The outer surface is carbonised to improve heat radiation. Note the wire welded to the anode support that holds the bottom mica in place.
The classic envelope is 51 mm in diameter, and excluding the B4 base pins is 125 mm tall.
References: Data-sheet & 1043. Type DO24 was first introduced in 1931. See also 1931 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
Pout
4.0
2.0
400
-25.0
63.0
1,670
6.0
5.5W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 03, 2015.
