12AU7

Sensibly equivalent to:
6067 B329 CV491 E2163 ECC82
See also:
Valves and their Habits - Pin Compatible Double Triodes

Extras ▼

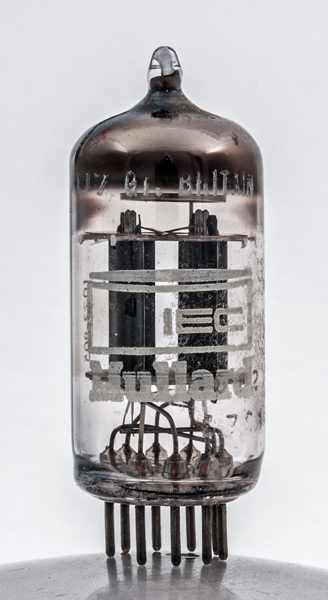

This exhibit is a Mullard British made 12AU7 that is branded IEC - the American reseller.
The 12AU7 is a low μ double triode with a quoted gain of 17.

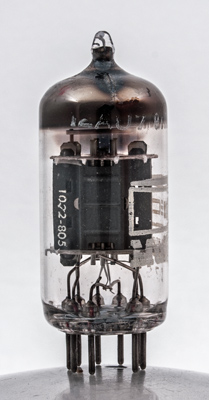

The 12AU7 near the top of the glass. Inside is the face of one anode.

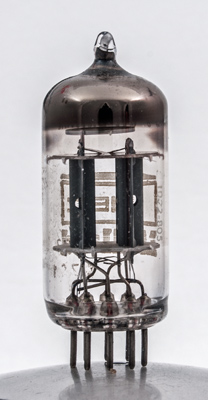

The pair of triodes seen end on.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
References: Data-sheet & 1040. Type 12AU7 was first introduced in 1951. See also 1951 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.3
250
-8.5
10.5
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2016.
