6067

Sensibly equivalent to:
CV4003 M8136
See also:
Valves and their Habits - Pin Compatible Double Triodes

Extras ▼

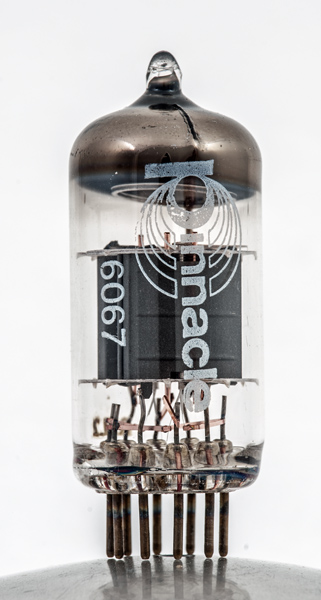

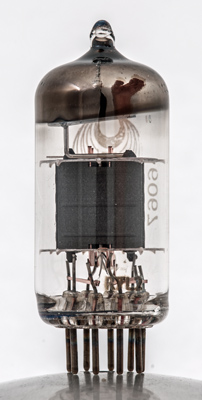

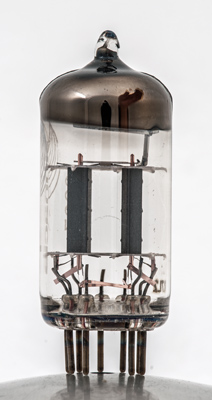

The 6067 is a special quality double triode with separate cathodes. Electrically it is equivalent to the 12AU7 but constructed to withstand vibration by being fitted with double mica sheets.
The twin triodes with internal separation but no internal screen as these are not designed for small signal RF use.
The grid is wound on copper supports.
The thin glass tube envelope is 20 mm in diameter and the length excluding the B9A base pins, is 46 mm.
Reference: Datasheet. Type 6067 was first introduced in 1951.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.3
250
-8.5
10.5
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 15, 2018.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(2) pin:2.g1(2) pin:3.k(2) pin:4.h pin:5.h pin:6.a(1) pin:7.g1(1) pin:8.k(1) pin:9.hct
