ECL82

Sensibly equivalent to:
6BM8 6PL12
See also:
The Stereoplex Amplifier - A Valve Power Supply - A 3 Valve 9 Watt Amplifier

Extras ▼



The ECL82 is an audio triode plus output pentode. The ECL82 was much used in record players with crystal pickups of the late 1950s and early 1960s. Crystal pickups had a relatively high output and when coupled with the single ended pentode output stage made effectively a single valve design. Only a rectifier was required to complete the line-up.
See alsoECL82, PCL82 and UCL82.

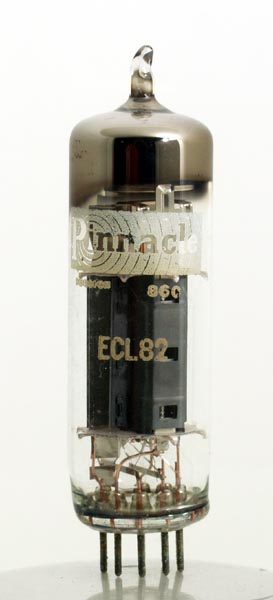

The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins the valve is 68 mm long.
References: Datasheet & 1040. Type ECL82 was first introduced in 1956.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
k,G3,S
g1
h
h
a
g2
k(t)
a(t)



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
gm
6.3
0.78
200
200
-16
35
6.4



Absolute Maximum Operating Conditions
Triode
Va
mAa
gm
100
3.5
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 17, 2018.
shape:thin.glass.tube construction:all.glass type:triode.pentode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.g1(t) pin:2.k.g3.s pin:3.g1 pin:4.h pin:5.h pin:6.a pin:7.g2 pin:8.k(t) pin:9.a(t)
