CV9167

Sensibly equivalent to:
ECL82
See also:
The Stereoplex Amplifier - A Valve Power Supply - A 3 Valve 9 Watt Amplifier

Extras ▼

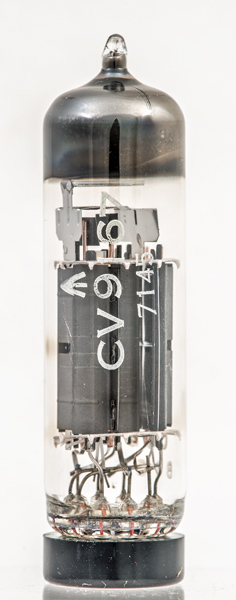

The CV9167 (ECL82) is described by Mullard as an audio triode plus output pentode. The Mullard name does not appear on the glass but the typeface is typical Mullard.
The triode section has a amplification factor of 70. Application would be audio stages and television receivers.

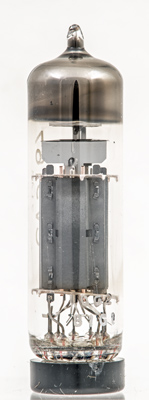

The triode can be seen to have copper grid supports.
The triode on the left. The hole in the anode shows the relative electrode spacings.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins the valve is 68 mm long.
References: Data-sheet & 1040. Type CV9167 was first introduced in 1956. See also 1956 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
k,g3,S
g1
h
h
a
g2
k(t)
a(t)



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
gm
6.3
0.78
200
200
-16
35
6.4



Absolute Maximum Operating Conditions
Triode
Va
mAa
gm
100
3.5
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
