CV4055

Sensibly equivalent^¶ to:

6132 6CH6 CV2127 VX7102

See also:

Trustworthy Valves Advert - Trustworthy Valves Advert - 12 Points of Trustworthy Valves Advert

Extras ▼

Brimar The Hampshire Collection Other CV4055 exhibits

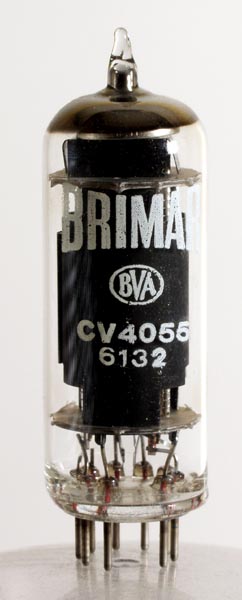

The CV4055/6132 is a special quality beam tetrode based on the CV2127 or 6CH6. The design is for a video output valve.

The beam plates are formed from four vertical support rods. The cathode is flat and the grids shaped to pass across the cathode at a constant distance from it.

The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins, is 60 mm tall.

References: Data-sheet. Type CV4055 was first introduced in 1956. See also 1956 adverts.

Pin Connections

B9A	1	2	3	4	5	6	7	8	9
	ic	g1	k	h	h	nc	a	g2	g3

Absolute Maximum Operating Conditions^¶

Beam Tetrode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	Pout	D
	6.3	0.75	250	250	-4.5	40	6	50,000	11	3W	8.5%

Thanks to Frank Philipse for supplying the above PDF datasheet.
