GZ33

Sensibly equivalent to:
53KU CV378 CV5745 U54

Extras ▼



The GZ33 shares base pin layout with the GZ32 and the GZ34. All are full wave rectifiers with a rating of 500 Volts for the anodes. The GZ34 is an upgrade to the GZ32 and both are rated at 125 mA rectifier current. The GZ33, however, is a high current version and is rated at 250 mA rectified current, and unlike its lower rated counterparts is not given a maximum reservoir current rating, but 200 µF would seem a maximum value that would be used in practice. The cathode is tied to one side of the heater as heater-cathode insulation would not be sufficient to withstand the full voltage.

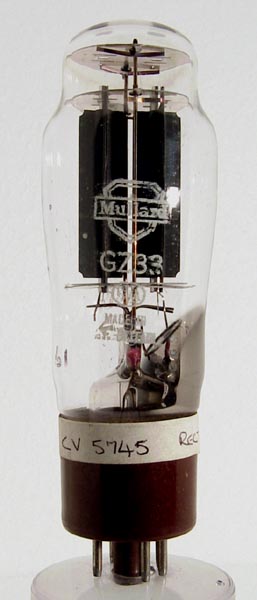

The classic envelope is 42 mm in diameter and, excluding the IO base pins, is 123 mm tall.
References: Datasheet & 1040. Type GZ33 was first introduced in 1954.



Pin Connections
IO
1
2
3
4
5
6
7
8
M
h
nc
a(2)
nc
a(1)
nc
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.8
500
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 20, 2013.
shape:classic construction:pinch type:rectifier.fw age:1950.1960 base:io heater:5.0v pins:8 pin:1.m pin:2.h pin:3.nc pin:4.a(2) pin:5.nc pin:6.a(1) pin:7.nc pin:8.h.k
