GZ32

Sensibly equivalent to:
52KU 5AQ4 5V4G 5Z4G CV593
See also:
Mullard Transistor Controlled PSU Advert

Extras ▼



This exhibit, the GZ32, is a medium power full wave rectifier for general purpose use. It probably would have been used in audio power amplifiers or modest radio transmitters.
The maximum reservoir capacitor was 60 µF and the minimum series resistance to limit current was 150 Ohms.

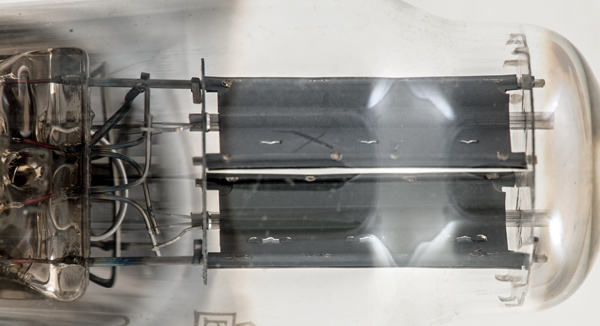

Face view of one anode. The majority of the width is just a radiator with the working cylinder in the centre.
The round cathode tube with insulated heater.
The classic envelope is 44 mm in diameter and, excluding the IO base pins, is 102 mm tall.
References: Data-sheet & 1040. Type GZ32 was first introduced in 1946. See also 1946 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
nc
a(2)
nc
a(1)
nc
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.3
500
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2022.
