Mullard

EL86


HMS Collingwood
equivalents

new




home
Sensibly equivalent to:- 6CW5 - CV5094

See also:
More Transformerless Amplifiers

This exhibit was last updated on 20 March 2013
Become a friend or
with PayPal.

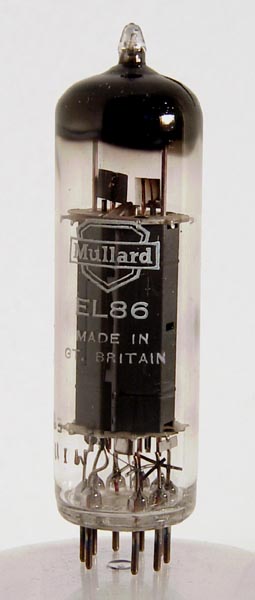

The EL86 is an output pentode with an anode dissipation of 12 Watts. The EL86 is designed for a higher anode current and lower anode voltage than the EL84. This would suit transformerless designs of the type called single ended push pull see data-sheet. It was also specified for use as a series regulator.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 68 mm tall.
References: Datasheet & 1040. Type EL86 was first introduced in 1956.

Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2

Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
ra
gm
Pdiss
Pout
6.3
0.76
200
200
64
3.2
2,500
10
12W
5.3W

Thanks to Frank Philipse for supplying the above PDF datasheet
