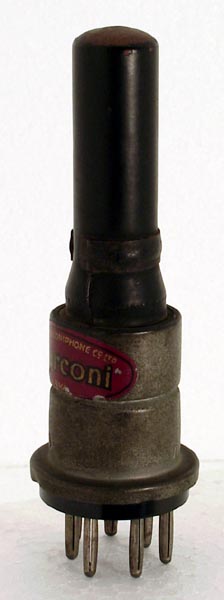

The N30 by Marconi is a Catkin external anode audio output valve.
It would have been used as the audio output stage of an AC/DC or Universal receiver. The design is dated to 1934 and is a series 2 Catkin. The N30 was a version of the MPT4 but with a 13V 0.3A heater, intended for use in AC/DC sets.
The thin metal tube envelope is 18 mm in diameter, with the metal base 28 mm in diameter and, excluding the B7 base pins, is 103 mm tall.
References: Data-sheet Type N30 was first introduced in 1934. See also 1934 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
nc
g1
g2
h
h
k
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
13.0
0.3
250
250
-15
32
8
3.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
