EL84

Sensibly equivalent to:
6BQ5 6P15 CV2975 N709
See also:
Phab EL84 Box - Transformerless Amplifiers - A Small High Quality Amplifier - Current Limited 0-200V Supply

Extras ▼



The EL84 output pentode was introduced by Mullard in 1954 and has been made and sold by many others as it is one of the standard audio output valves.

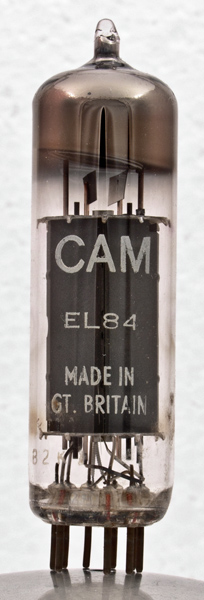

This exhibit is an ebay find complete with the Phab box.

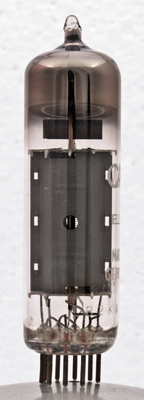

The side view with the grid supports showing. This valve looks very much like a re-badge Mullard product.

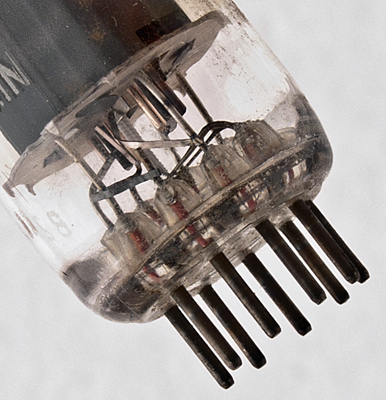

The base showing the tape connections between the base assembly and the jig formed electrodes.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 70 mm tall.
References: Data-sheet & 1045 Type EL84 was first introduced in 1953. See also 1953 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
Pdiss
6.3
0.76
250
250
-7.3
48
5.5
6.7
2.2
12W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 23, 2014.
