CV2975

Sensibly equivalent to:
6BQ5 6P15 E84L EL84
See also:
Mullard's EL84

Extras ▼



The CV2975 (commercially the EL84) is an audio output pentode.
When used as a pair in an ultra-linear push-pull configuration with 43% distributed loading the output could reach 10 W with 0.9 % total harmonic distortion.

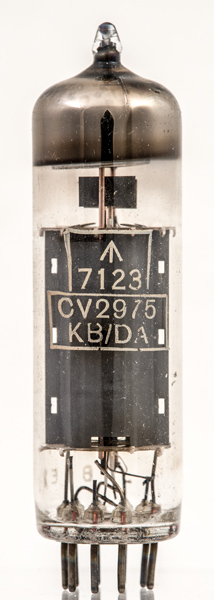

The KB/DA identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the DA identifies the maker as Mullard Radio Valve Co., Blackburn.

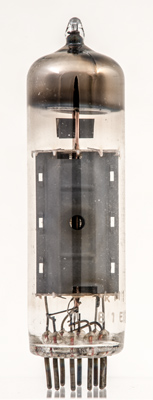

The hole in the end wall of the anode shows that this is a true pentode with three grids.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 69 mm tall.
References: Data-sheet & 1040. Type CV2975 was first introduced in 1960. See also 1960 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
Pdiss
6.3
0.76
250
250
-7.3
48
5.5
6.7
2.2
12W
Thanks to Frank Philipse for supplying the above PDF datasheet.
