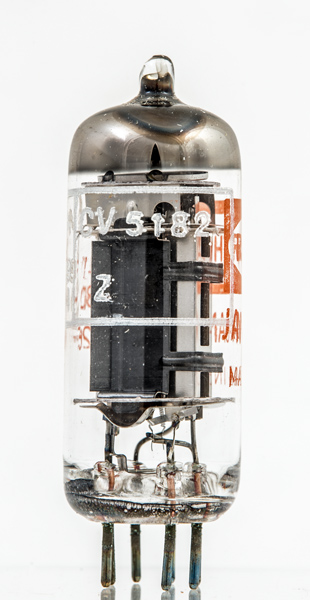

The CV5182 (commercially the 6AN5WA) is a special quality version of the 6AN5. The design is for long life and stable performance as one of the main application areas is within electronic computers.
The data-sheet gives applications as wide band RF or video amplifier, pulse amplifier or frequency divider. The cathode is designed to withstand operating for long periods under cut-off conditions.
As a power amplifier it can produce 1.25 Watts.

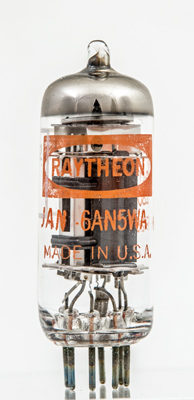

The Raytheon name logo together with the commercial Type designation and Made in USA. The bright box on the left is the beam forming plate - this valve has been built as a beam tetrode.

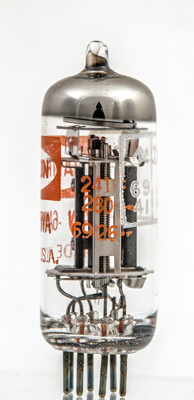

Looking along the grid axis and through the beam plate to the screen grid support and wire.

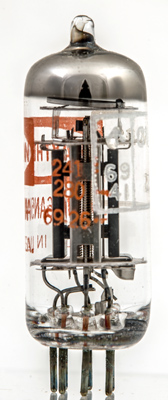

With a slight change of angle, this image shows the screen grid wires passing flat across the cathode. With difficulty the inner control grid can also be glimpsed.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 46 mm tall.
