ECH42

Sensibly equivalent to:
62-TH 6C10 6CU7 CV3888 X150

Extras ▼



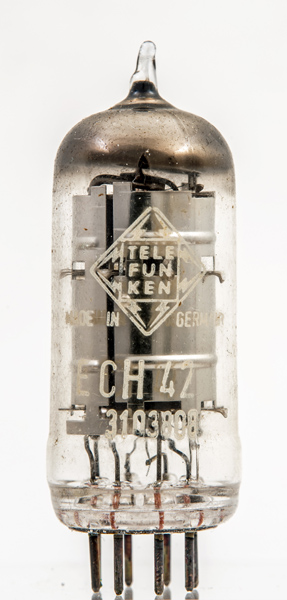

The ECH42 is a triode hexode mixer in an all glass envelope fitted with a B8A base and designed for radio receivers.

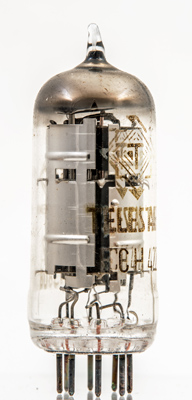

The second set of lettering is Telestar with a T logo above.

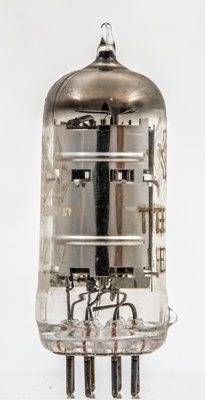

Little internal structure is visible, but partway up is a mica disc. This suggests that the triode is mounted above the mixer section and only a single set of copper supports can be seen at the top.
The thin glass tube envelope is 20 mm in diameter, and excluding the B8A base pins is 53 mm tall.
References: Data-sheet & 1040. Type ECH42 was first introduced in 1949. See also 1949 adverts.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
a(t)
g1(t),g3
g2,g4
g1
k
h



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.23
250
85
-2.0
3.2
3.75
1.0M
0.71
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December04, 2022.
