6F5

Sensibly equivalent to:
CV1909

Extras ▼



The 6F5 is classified as a high-μ triode for voltage amplification. It was designed for resistance-capacitance coupled circuits. The 6SF5 is the same valve but the control grid is taken to a base pin not a top cap.

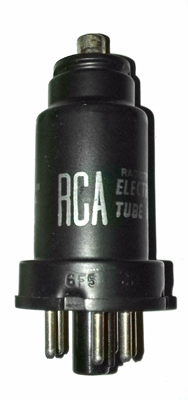

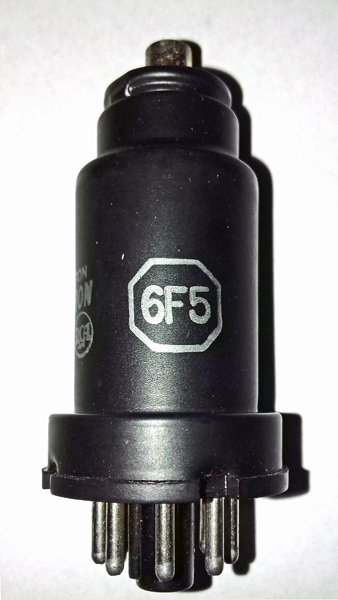

The RCA name and the 6F5 is stamped into the envelope skirt.
Thanks to Mark Mallison for sending these images.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 62 mm tall.
Reference: Data-sheet. Type 6F5 was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
nc
a
nc
nc
h
k
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
200
-2
0.9
66k
1.15
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 08, 2022.
