6SF5

Sensibly equivalent to:
CV1972

Extras ▼



The 6SF5 is a high gain triode designed for RC coupled voltage amplifier use in audio equipment, especially vehicle battery powered sets.
The 6F5 has the control grid taken to the top cap.
The 12SF5 is the same valve but equipped with a 12.6 Volt heater.

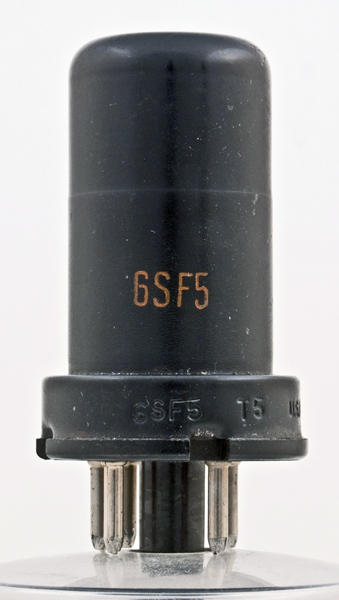

The reverse of the metal tube envelope carries the RCA logo.
The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins is 50 mm tall.
References: Data-sheet & 1040. Type 6SF5 was first introduced in 1938. See also 1938 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
k
g1
nc
a
nc
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.3
200
-2
0.9
66,000
1.15
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
