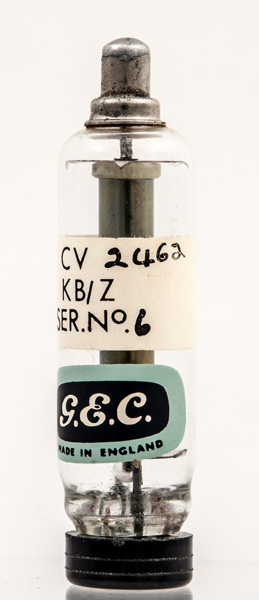

The CV2462 (commercially the SC1/1400) is a high voltage low current corona voltage stabiliser for EHT voltages.SC1/1400 is a high voltage low current voltage stabiliser.

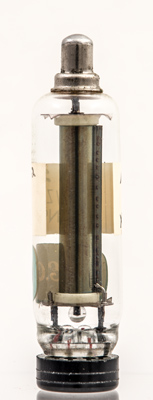

The outer cathode tube with central rod anode within. Ceramic insulators for the high voltage.The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 64 mm tall.Reference: Data-sheet. Type CV2462 was first introduced in 1958. See also 1958 adverts. |
