CV71

Sensibly equivalent to:
Osglim

Extras ▼



The CV71 is described as an Osglim indicator lamp without a series resistor. The stabiliser is used with the ring electrode at the negative end of the circuit and shielded to cut-out almost all of the neon glow.
This exhibit is an unopened original pack. The wrapping of the inner box is wax paper. The writing says that inside is just a single bulb.

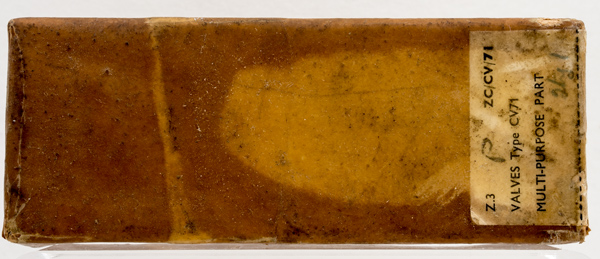

The label on the top says that this is a multi-pack.

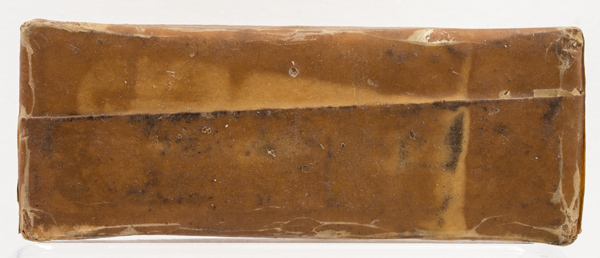

The underside where the wax paper seals together.
The box measures 30 x 51 x 130 mm.
References: Data-sheet.



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
160
4.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 22, 2021.
