The CV71 is described as an Osglim indicator lamp without a series resistor. The stabiliser is used with the ring electrode at the negative end of the circuit and shielded to cut-out almost all of the neon glow.

The stabiliser will strike at around 230 Volts.

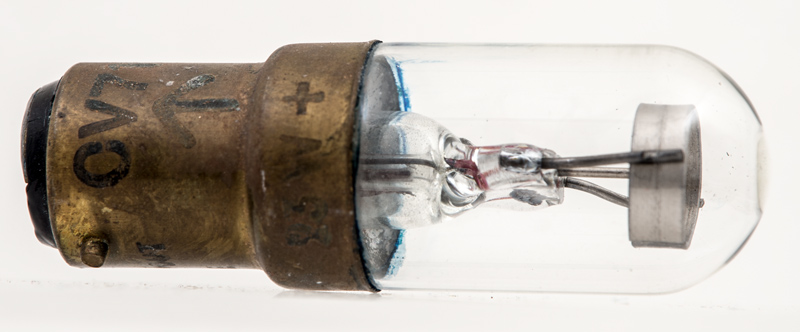

There is an arrow indicating the positive electrode and printed on the base cap are the words 'Not to be burnt without series resistance'. The data-sheet states there is a black + on the upper part of the base to mark the positive contact and this we see in the image.

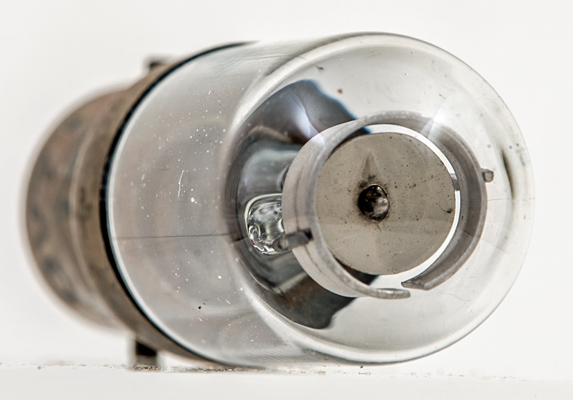

The ring and plate electrodes.

See also CV71 in a sealed wax paper covered box.

The thin glass tube envelope is 18 mm in diameter, and including the small bayonet base is 56 mm tall.

References: Data-sheet.
