VR32

Sensibly equivalent to:
220B AR16 CV1032

Extras ▼

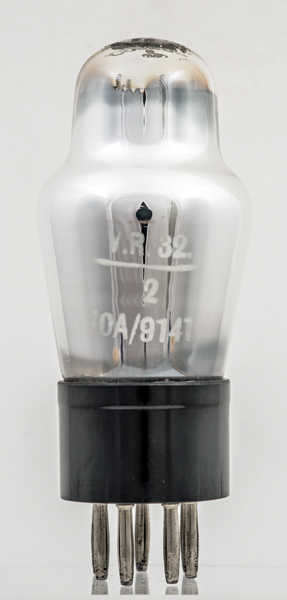

This exhibit is a battery Class B audio power amplifier based on the Cossor 220B and in this instance made by Cossor.
The pre-CV RAF designation is VR32. It became the CV1032. The UK Army designation was AR16.

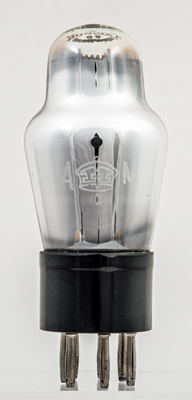

The Air Ministry identification of a crown with the letters AM.

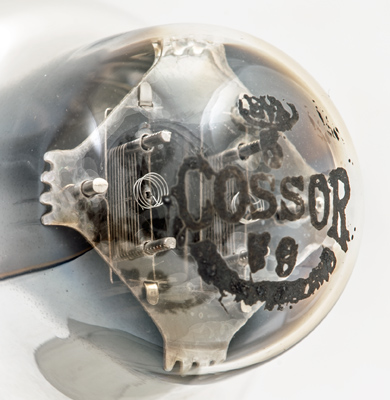

The dome carries the Cossor name and within can be seen the twin triodes. The close wound grid and filament tension spring of the left triode is in sharp focus. The top mica side fingers can be seen to tightly grip the glass walls.
The classic envelope is 44 mm in diameter and, excluding the B7 base pins, is 93 mm tall.
Reference: Data-sheet.



Pin Connections
B7
1
2
3
4
5
6
7
g1(1)
g1(2)
a(2)
f-
f+
nc
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
2.0
0.2
150
-1
6.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 09, 2022.
