CV1066Sensibly equivalent¶ to:
|
|
|
The CV1066 is a triode also known as the VR66. The maximum operating frequency is 100 MHz. The prototype was the Mazda P41 that was modified to have a 6.3 Volt heater - the P61.The KB/EN identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the EN identifies the maker as Thorn-AEI, Sunderland.

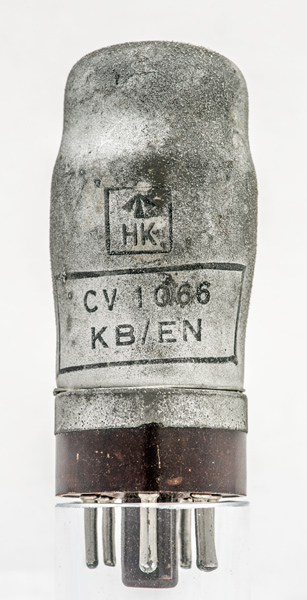

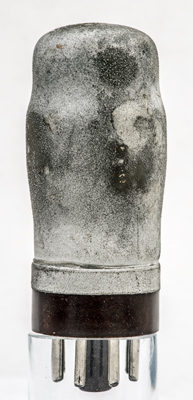

The reverse is plain zinc metallic paint.The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 70 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  h | k | a | nc | g1 | m | nc | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm | μ |
| 6.3 | 0.64 | 250 | -1 | 30 | 2,100 | 8.0 | 17 |
|
