CV1430

Sensibly equivalent to:
AC/SP2/RH ACSP3

Extras ▼

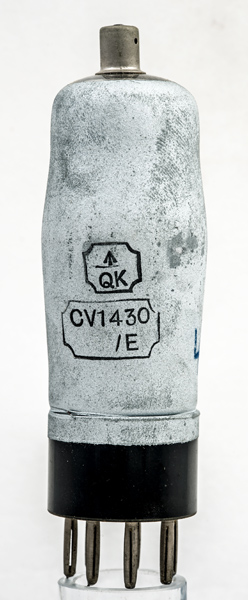

The CV1430 is a high slope screened HP pentode. The construction on the RH variant is designed to reduce hum and microphony. It is not clear if the CV specification was for the standard version or the RH variant
The design use is voltage amplification for audio or video signals.

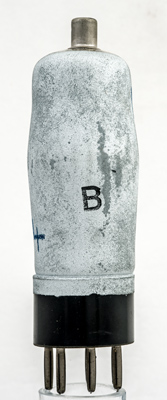

The zinc paint has a B on the reverse.
The classic envelope is 39 mm in diameter and, excluding the B7 base pins, is 113 mm tall.
Reference: Data-sheet.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
a
g3
h
h
k
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
1.0
250
250
-3.5
12.3
3.85
0.34M
7.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
