CV1264

Sensibly equivalent to:
45IU AU1 CV31 CV2529 FW4-500 NU12 U18 U18/20

Extras ▼



The CV1264 full wave rectifier is a higher power device than most full wave rectifiers at 500 Volts at 250 mA. The valve is directly heated. The maximum reservoir capacitor is 16 µF and the minimum effective series resistance has to be 200 Ohms.

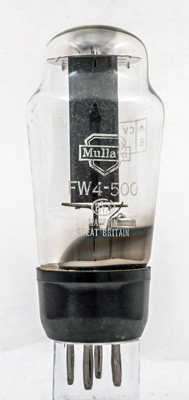

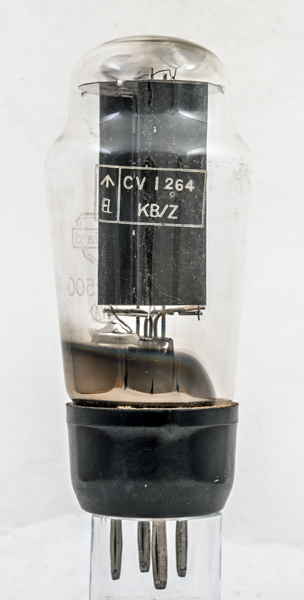

This CV valve is identical to the commercial Type and this is a Mullard FW4-500 with the addition of the CV identification.
The twin anodes folded and stitched together.

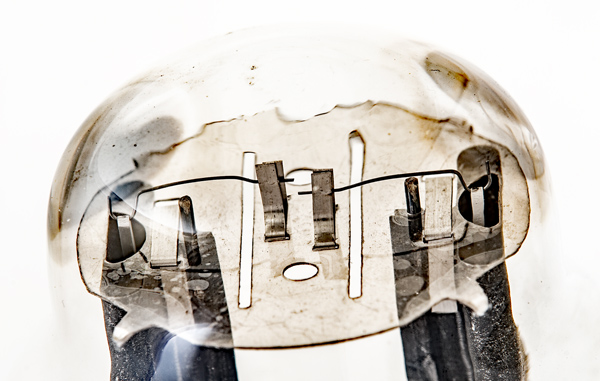

The rectifier is directly heated and the oxide coated ribbon filaments can be seen to be held in the hook ends of the tensioning springs.
The classic envelope is 50 mm in diameter, and excluding the B4 base pins, is 110 mm tall.
References: Data-sheet, 1040 & 1043.



Pin Connections
B4
1
2
3
4
a(1)
a(2)
f
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
3.0
500
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 03, 2021.
