CV242

Sensibly equivalent to:
CMG25 CV1472 GS18

Extras ▼

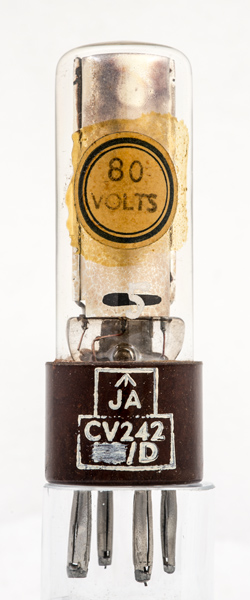

The CV242 photocell is designed to have an anode voltage of 80 Volts and has a sticker to indicate this.

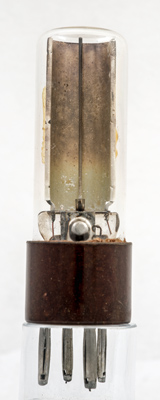

The cathode is a flat plate that is folded to form a half cylinder.
The anode is a single vertical rod supported only at the base.
The thin glass tube envelope is 25 mm in diameter, and excluding the B4 base pins is 78 mm tall.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
4
a
k
nc
nc



Absolute Maximum Operating Conditions
Light Control
Va
80
Thanks to Frank Philipse for supplying the above PDF datasheet.
