CV1092

Sensibly equivalent to:
D61 EA50 SD61 VR92
See also:
The Famous EF50 of WWII

Extras ▼



The CV1092 is a miniature signal diode. It was used in demodulation and other signal rectification duties for TV and Radar. The CV specification cites the EA50 and VR92 as prototypes.
Working at 45 MHz a physically small diode with minimal lead inductance was required.
Our exhibit D1 is physically identical, but has a 4.0 Volt heater.

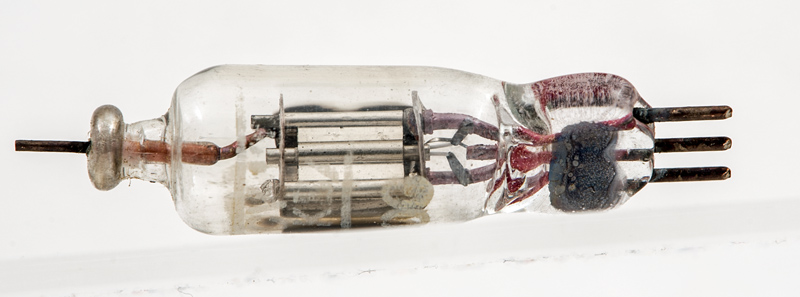

The thin glass tube envelope is 11 mm in diameter and, including the B3G base pins, is 47 mm tall.
References: Data-sheet & 1040.



Pin Connections
B3G
1
2
3
tc
h
k
h
a



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.15
50
5.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 14, 2021.
