A2792Sensibly equivalent¶ to:
|
|
|
The A2792 (CV6097) is a shunt voltage stabiliser triode. The anode would connect to the HT rail and the cathode to ground. A sense circuit would monitor the output voltage and control the conduction through the triode. In this way the HT rail would be maintained at a near constant level. For high current application a series pass stabiliser would be used.

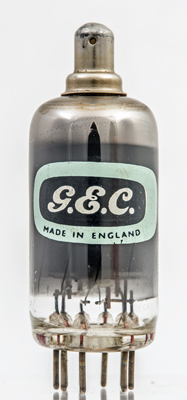

The GEC paper label indication a valve for professional equipment.The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 52 mm tall. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | tc |  ic | g1 | ic | h | h | ic | k | ic | ic | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa |
| 6.3 | 0.3 | 500 | -3.2 | 1.0 |
|
