2D4B



Extras ▼

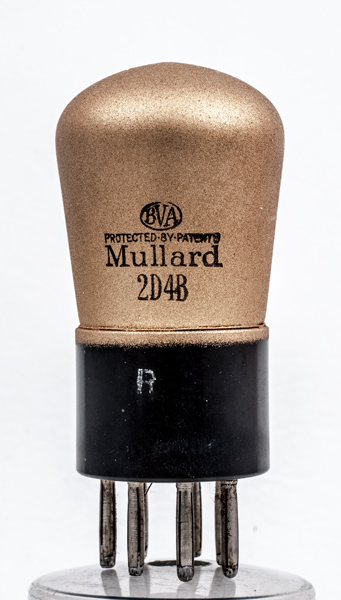

The 2D4B is a pair of indirectly heated signal diodes with separate cathodes. The 2D4A has the same ratings but a single cathode and a B5 base cap.

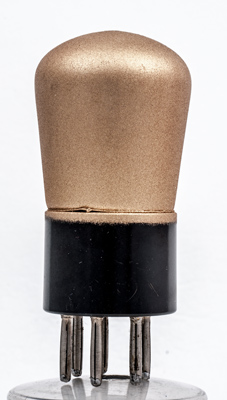

The reverse is plain.
The balloon envelope is 41 mm in diameter, and excluding the B7 base pins is 74 mm tall.
References: Datasheet & 1043. Type 2D4B was first introduced in 1937.



Pin Connections
B7
1
2
3
4
5
6
7
m
a(2)
k(2)
h
h
k(1)
a(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
4.0
0.35
200
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 22, 2016.
shape:balloon construction:pinch type:double.diode age:1930.1940 base:b7 heater:4.0v pins:7 pin:1.m pin:2.a(2) pin:3.k(2) pin:4.h pin:5.h pin:6.k(1) pin:7.a(1)
