6146B

Sensibly equivalent to:
8298A

Extras ▼

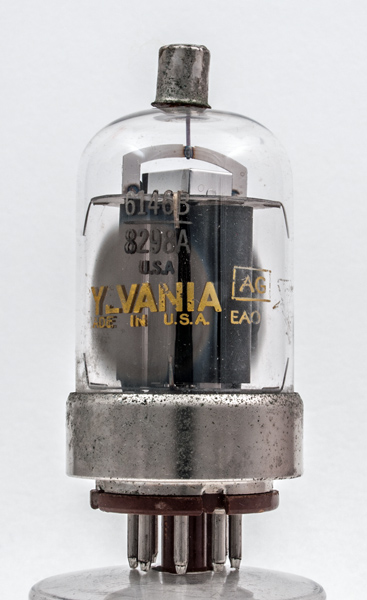

The 6146B is a variant of the popular 6146 HF power beam tetrode. This exhibit from Sylvania also carries the Type designation of 8298A. The 6146B was designed for mobile transmitters and the heater was designed for a wide range of input voltage and not just the 10% around the nominal 6.3 Volts. RCA also state that the 6146B has controlled zero-bias anode current.
The 6146 family first appeared in 1952 with the A and B variants following later in the decade.
The 6146 family all have rounded end anodes with flanges at the centres of the working faces for best heat dissipation.
The wide glass tube envelope is 38 mm in diameter and excluding the IO base pins, the valve is 81 mm.
References: Data-sheet & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
k,bp
h
g2
k,bp
g1
k,bp
h
m
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pout
Pdiss
freq
f.max
6.3
1.25
600
150
-58
112
9
2.8
0.2W
52W
27W
60
175
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 21, 2016.
