6084

Sensibly equivalent to:
CV2729 E80F

Extras ▼



The 6084 (also known as E80F) is a special quality valve with a life longer than 10,000 hours. It was designed for audio amplifier use, normally in RC coupled designs. It is also specified for electrometer applications and the operating conditions are shown in the second set of parameters. In this application the input current to g1 is less than 0.1 nanoA.

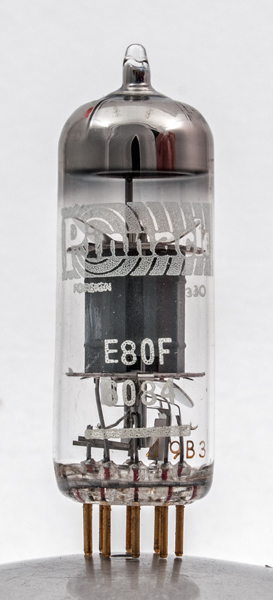

This example is branded Pinnacle and is of non UK origin and so is labeled foreign.

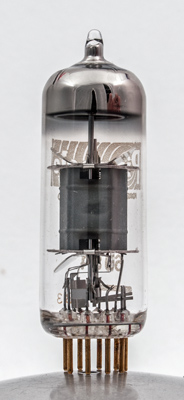

The three wire grids can be seen through the notch in the anode. Note the gold plated pins for this professional valve.

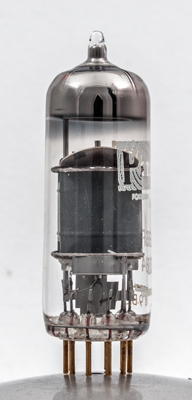

The anode above the lower mica and screening plates below the mica disc.
The thin glass tube envelope is 20 mm diameter and excluding the B9A base pins stands 58 mm high.
Reference: Data-sheet. Type 6084 was first introduced in 1951. See also 1951 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
s
k
h
h
a
s
g3
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2
3.0
0.7
1.5M
1.8



Absolute Maximum Operating Conditions
Pentode
Vh
Va
Vs
Vg
mAa
mAs
4.5
40
40
-2.15
0.04
0.009
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2016.
