E80F

Sensibly equivalent to:
CV2729

Extras ▼

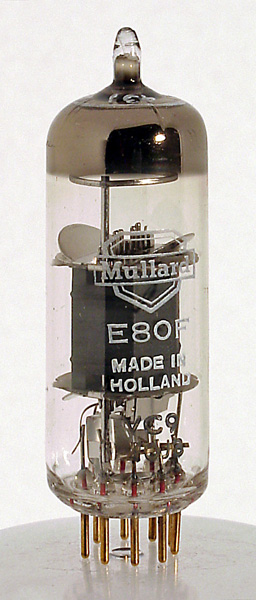

The E80F is a Mullard special quality valve with a life longer than 10,000 hours. It was designed for audio amplifier use, normally in RC coupled designs. It is also specified for electrometer applications and the operating conditions are shown in the second set of parameters. In this application the input current to g1 is less than 0.1 nanoA.
The thin glass tube envelope is 19 mm diameter and excluding the B9A base pins stands 58 mm high.
Reference: Data-sheet. Type E80F was first introduced in 1951. See also 1951 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
s
k
h
h
a
s
g3
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2
3.0
0.7
1.5M
1.8



Absolute Maximum Operating Conditions
Pentode
Vh
Va
Vs
Vg
mAa
mAs
4.5
40
40
-2.15
0.04
0.009
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 17, 2013.
