QQC04/15

Sensibly equivalent to:
5895 AX9905
See also:
QQC04/15 box

Extras ▼



The QQC04/15 is a directly heated VHF double beam tetrode for use as an amplifier, oscillator or tripler. The anode dissipation is 2 x 6 Watts.

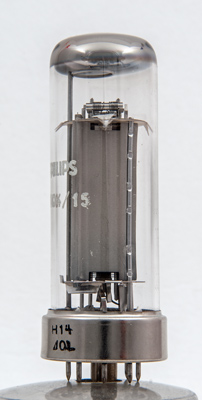

The face view of one anode. At he top can be seen the wire turns of the filament tension spring. The two halves of the spring extend and form a flat U shape so that the filament is held apart by a few mm and thus the two lengths of filament pass side by side down the valve.

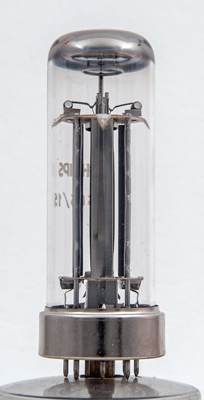

The two anodes with central column showing the beam plate. The form of the filament springs can be seen at the top.

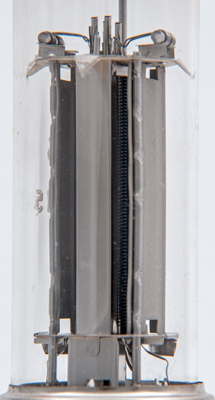

The two grids are aligned and thus have the same pitch.
The wide glass tube envelope is 27 mm in diameter, and excluding the B8B base pins is 81 mm tall.
Reference: Data-sheet. Type QQC04/15 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
f
a(1)
fct,s
a(1)
f
g1(2)
g2
a(2)



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
6.3
0.68
600
Thanks to Frank Philipse for supplying the above PDF datasheet.
