Z21

Sensibly equivalent to:
215SG CV1018 CV3835 CV3837 KTZ21 VR18

Extras ▼

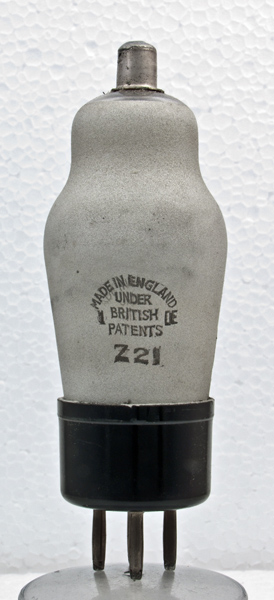

The Z21 is a straight HF pentode and equivalent to the KTZ21 as they are different designations for the same design. The makers data state that it is particularly useful as a sensitive detector.
The Z21 was issued with B4 or B7 base caps.

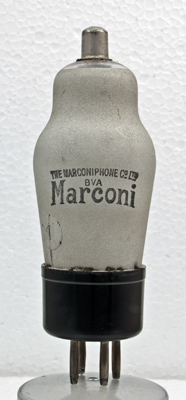

The reverse carries the Marconi name and on the left is the wire and fixing to connect the metallising to the base.
The classic envelope is 41 mm in diameter, and excluding the B4 base pins is 103 mm tall.
References: Data-sheet, 1040 & 1043. Type Z21 was first introduced in 1937. See also 1937 adverts.



Pin Connections
B4
1
2
3
4
tc
g2
g1
f
f
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.1
150
120
-0.5
2.5
0.8
-
1.7
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 19, 2014.
