CV572

Sensibly equivalent to:
6X5G

Extras ▼

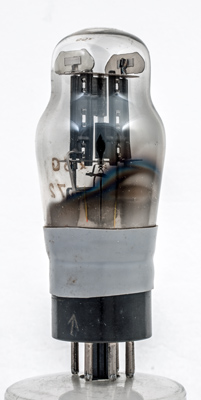

The CV572 is a full wave vacuum rectifier and identical to the 6X5G and both designations are present on the glass of this exhibit.

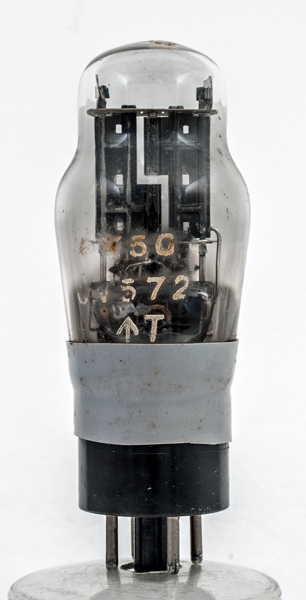

The active area is a small diameter cylinder and so the front to back dimension is much smaller than side to side where the extra metal acts as a heat radiator.
The central coated cathode has the anodes mounted vertically. The heater is a double helix.
The classic envelope is 38 mm in diameter, and excluding the IO base pins is 88 mm tall.
Reference: Datasheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
a
-
a
-
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
6.3
0.6
325
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 25, 2018.
shape:classic construction:pinch type:rectifier.fw age:1930.1940 base:io heater:6.3v pins:8 pin:1.- pin:2.h pin:3.a pin:4.- pin:5.a pin:6.- pin:7.h pin:8.k
