CV4043

Sensibly equivalent to:
6061 6BW6 CV2136 VX7082

Extras ▼

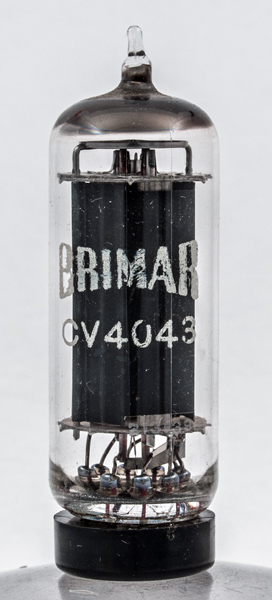

The CV4043 is a beam tetrode based on the CV2136. The CV4043 is a special quality valve with a commercial equivalent of the 6061, which is in turn the up-rated version of the commercial 6BW6.
This family of valves are audio output beam tetrodes, designed for single ended or push pull use. All are versions of the 6V6GT formatted for the B9A base.
See also CV4045 for a flying lead version.

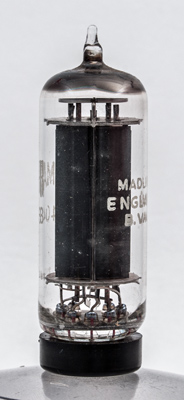

The beam plate can be seen through the reduced height sections of the anode.

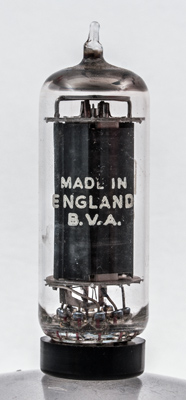

The central anode seam and flange is placed on the working face.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 58 mm tall.
References: Data-sheet & 1040. Type CV4043 was first introduced in 1956. See also 1956 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k
h
h
nc
a
g2
g3



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.45
315
225
-13
34
2.2
77k
3.75
5.5
12%
Thanks to Frank Philipse for supplying the above PDF datasheet.
