30P19

Sensibly equivalent to:
N389 PL302
See also:
Valves and their Habits - 30P19 Advert

Extras ▼



The 30P19 was designed for service as a line output valve in monochrome television receivers with 110° deflection. The 90° earlier version is the 30P4.
Line output service requires high peak voltages and the 30P19 can withstand positive anode surges of 7,000 Volts. The anode dissipation is 10.0 Watts and the screen grid can dissipate 5.0 Watts.

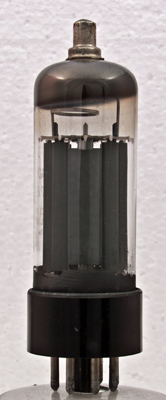

The anode in this exhibit has several fins and no holes. 30P19 has an open anode with less cooling capacity and is probably an earlier version.

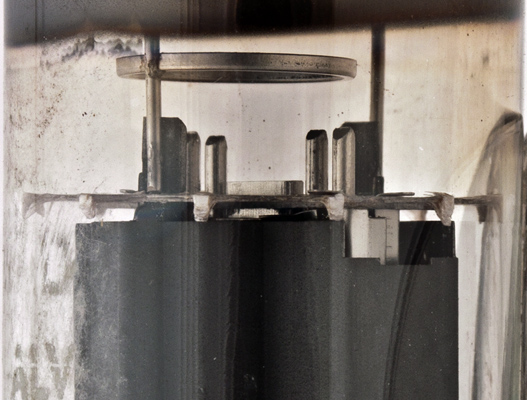

The inner structure is obscured but the bright beam forming plate can be seen as can the wide cathode.

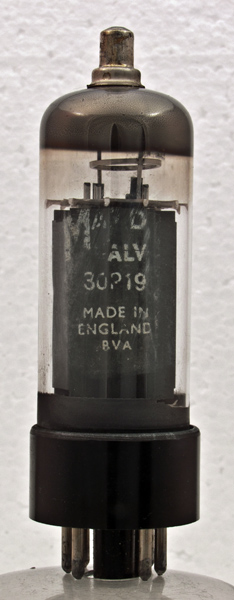

The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 91 mm tall.
References: 4051 & 1040. Type 30P19 was first introduced in 1960. See also 1960 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
ic
h
ic
g2
g1
nc
h
k,g3
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Pdiss
25.0
0.3
400
250
10.0W
Updated January 08, 2022.
