ECC81

Sensibly equivalent to:
12AT7 B152 B309 CV455 E2157 E811CC

Extras ▼

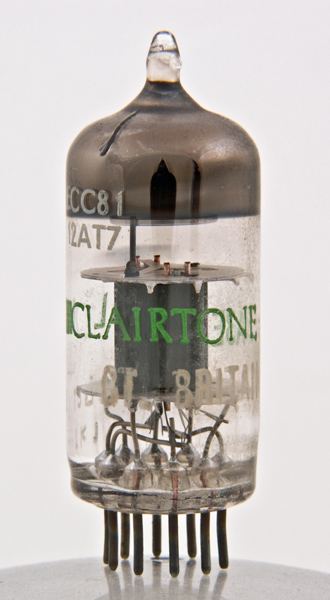

The ECC81 was designed for RF voltage amplifier use. The exhibit is labeled Clairtone and Great Britain. The mark made by the machinery that closed off the glass tube is a match for the Mullard ECC81.
Side on the triode section can be seen to be nearly flat.
The thin glass tube envelope is 20 mm in diameter and excluding B9A base pins the length is 49 mm.
References: Datasheet & 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-2.0
10.0
10,000
5.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
