ECF82

Sensibly equivalent to:
6U8 CV5065
See also:
Valves for Bands III, IV & V - A New Phase-splitter - ECF80 and ECF82

Extras ▼



The ECF82 is a high slope triode pentode designed for television use as a frequency changer or mixer. It was also found to be effective as an audio phase splitter and used by Radford.

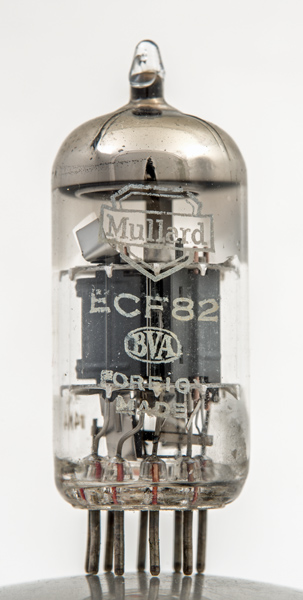

The envelope has the older logo and white lettering including the words 'Foreign Made'.

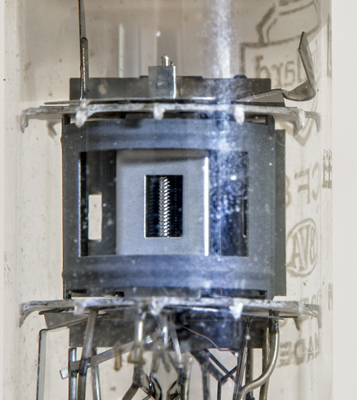

Face view of the triode with the single side stitching of the anode on the left.
Looking along the grid axis of the beam tetrode. The hole in the end of the beam plates reveals the screen grid end support and the width of the screen grid can just be made out.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 48 mm tall.
References: Data-sheet & 1040 Type ECF82 was first introduced in 1953. See also 1953 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,g3,s
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.45
250
110
-0.9
5.2
1.9
-
1.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
